Aluminum Mobile TowerModel：Double wide135cm
Product specifications
Maximum platform height： 2m/4m/6m/8m
Wide：1350mm
Load capacity ：1,587 LB (720 KG)
Tower kit dimensions
Standards ：EN1004
Product Description
1.Frame without ladder:H2000*W1350/750mm,4rung
2.Frame with ladder:H2000*W1350/750mm,4rung
3.Guardrail:H1000:W1350/750mm
4.Horizontal Brace:L2000mm
5.Diagonal Brace:L2500mm
6.Trapdoor Plywood Plank:Width:610mm Length:2000mm
7.Plywood Plank:Width:610mm Length:2000mm
8.Out-trigger:2000mm/3000mm
9.Adjustable Caster:6’/8’
10.Spring Clip
11.Toe Board:2000*750/1350mm
| Product Name | Size | Material | Tower Height | Platform Height | Working Height |
|---|---|---|---|---|---|
| Aluminum Mobile Tower | W750*L2000*H3000mm | 6061-T6 | 3000mm | 2000mm | 4000mm |
| Aluminum Mobile Tower | W750*L2000*H5000mm | 6061-T6 | 5000mm | 4000mm | 6000mm |
| Aluminum Mobile Tower | W750*L2000*H7000mm | 6061-T6 | 7000mm | 6000mm | 8000mm |
| Aluminum Mobile Tower | W750*L2000*H9000mm | 6061-T6 | 9000mm | 8000mm | 10000mm |

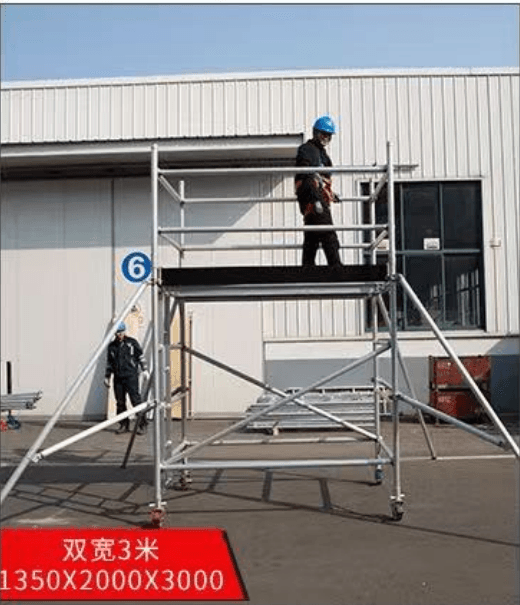

| Aluminum Mobile Tower | W1350*L2000*H3000mm | 6061-T6 | 3000mm | 2000mm | 4000mm |
| Aluminum Mobile Tower | W1350*L2000*H5000mm | 6061-T6 | 5000mm | 4000mm | 6000mm |
| Aluminum Mobile Tower | W1350*L2000*H7000mm | 6061-T6 | 7000mm | 6000mm | 8000mm |
| Aluminum Mobile Tower | W1350*L2000*H9000mm | 6061-T6 | 9000mm | 8000mm | 10000mm |
Aluminum Mobile Tower
1.Material: Aluminum alloy
2.Feature: Professional welders and engineers to ensure high quality Aluminum scaffolding .
3.Application: Exhibition setup- Interior refurbishing, All the towers can be connected together for multi-purpose
Products advantages:
Special design can be used for limited space, such as narrow footpath and passage,
It can be built in the elevator or other stair.
Steady and parts high utilize rate. Our ladder has enough strength, while you only need spend short time to remove and put all of them into microbus, easy to carrying.
Detailed photos
Packaging & Shipping
Wind effect on scaffolding
It is imperative to proceed with caution when NORD towers are installed in locations where they may be exposed to wind. Additionally, the “chimney effect” that occurs between buildings, or even inside buildings with open ends, needs to be considered.
Recommendations
When the wind force is higher than FORCE 4 Beaufort (Moderate breeze), DO NOT USE THE SCAFFOLDING.
If you believe the wind force may reach FORCE 6 (Strong breeze), TIE THE TOWER TO A RIGID STRUCTURE.
If you foresee a wind FORCE 8 (Gale), DISMANTLE THE TOWER OR MOVE IT TO A SAFE PLACE.
The distance between the outriggers of the small side of the base has to be at least 1/3 of the height in single width and 10’ (3m) high for double width.
Special Attention:
Always fasten the towers to fixed points when there is danger of instability or the weather conditions require doing so.
Assemble guardrails and toe boards on all the work platforms.
